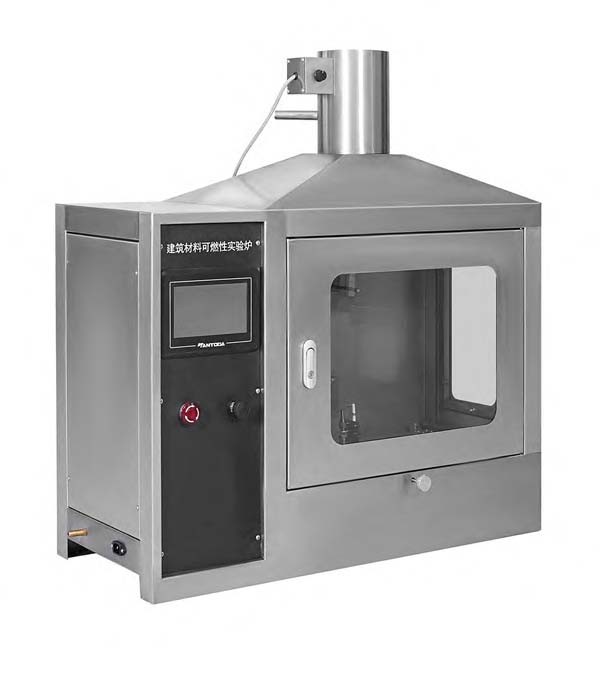

Building Material Flammability Test Furnace

The touch screen-controlled building materials flammability test furnace, upgraded from old JCK-2. features stainless steel casing, automatic sample lifting, and adjustable Bunsen lamp. It complies with GB8626-2007 and uses the German KLEINBRENNER principle to test Class B building materials' flammability by vertically impacting them with a small flame.

Application

In the construction industry, the flammability of building materials is crucial for building safety. Building material flammability testing furnaces can be used to test the flammability of various building materials, thereby improving building safety. This provides quality assurance for manufacturers. By testing the flammability of products, it ensures that products meet national standards and customer requirements, enhancing the competitiveness of enterprises. It is an important technical means for quality inspection agencies to test building materials. By testing the flammability of building materials, their safety and reliability can be assessed, thus guaranteeing building safety. The building material flammability testing furnace is of great significance in ensuring building safety and production quality: Through testing with the building material flammability testing furnace, companies can gain insights into product improvement and upgrading. Based on experimental data, more scientific and reasonable raw material ratios and production processes can be developed, improving product quality and competitiveness. It effectively assesses the flammability of building materials, facilitating the development of more detailed building codes and standards by relevant departments. At the same time, it allows for the prohibition and replacement of highly flammable building materials, thus improving building safety.

Standards

EN ISO11925-2:2002E : "Test Method for Flammability of Building Materials"

GB/T8626-2007 : "Combustibility test Method for Building Materials"

Features

It is ergonomically designed and operated. All tests are completed by touch screen operation. The degree of automation is high. The results of previous tests can be stored and the previous test data can be read.

The servo motor driven sample rack can be controlled to automatically lift;

Bunsen burner can be adjusted in advance and retreat;

1.5mm stainless steel plate case;

2 fan steel heat-resistant glass door double angle observation test, double (with lock) convenient and practical

High-pressure automatic ignition, durable combustion;

The ignition source can be automatically tilted by 45 degrees;

The flame height is adjusted by a precision regulating valve;

The sample holder can be moved up and down and back and forth;

Equipped with two sample holders.

Flame measurement scale;

High degree of automation, accurate and easy to operate experimental data;

Box size: w*d*h835*400*815mm

Material: 1.5mm stainless steel

The bottom of the box is a flat natural vent, and the vent is composed of a 5cm*5cm square vent (a true 1.5mm thick steel vent, 50mm high) to keep the airflow through.

Workmanship, true solderless process

Touch the display:

Size: 7 inches Effective display size Length 15.5cm Width 8.6cm;

Resolution: 800*480

Communication interface RS232. 3.3V CMOS or TTL, serial port mode

Storage capacity: 1G

Use pure hardware FPGA driver display, “zero” startup time, run on power

Using M3+FPGA architecture, M3 is responsible for instruction parsing, FPGA focuses on TFT display, speed and reliability are leading the same scheme

The main controller adopts a low-energy processor and automatically enters the energy-saving mode.

Parameters

Accessoriess

1. Building Material Flammability Tester  1 unit

2. Power cord  1 piece

3. Gas pipe (with clamp)  1 piece

4. Clamps  2 sets

5. Flame height measuring device  1 unit

6. Flame positioner  2 units

7. Stainless steel wind speed device (optional)  1 set

8. Product manual  1 copy

9. Product certificate of conformity  1 piece

Test Procedures

I. Equipment Installation and Preparation

Accessory Check: Confirm that the included accessories include the sample holder, positioning device, drip tray, flame ruler, gas valve, and gas pipe. If a wind speed device is selected, an additional power supply needs to be connected, and the wind speed should be adjusted to 0.7 ± 0.1 m/s.

Gas and Power Connection: Install the valve onto the gas cylinder (the safety valve needs to be opened manually), and connect the equipment's power and gas supply. If a wind speed meter is equipped, calibrate the airflow direction and insert it into the temperature measurement port.

II. Operating Procedure

Parameter Settings: Set the experiment time (usually 15 seconds or 30 seconds) via the touchscreen interface, and select whether to enable the "automatic ignition" or "automatic gas shut-off at the end of the experiment" function.

Sample Installation: Use the sample holder to fix the material (usually 250mm × 90mm), and adjust the flame contact position using the positioning device (e.g., 40mm from the bottom edge).

Flame Adjustment: Start the gas and ignite the flame, adjust the Bunsen burner to a 20 ± 2mm blue flame, and tilt it 45 degrees towards the sample.

III. Experiment Execution and Observation

Start Experiment: After clicking "Start," the burner contacts the sample and the countdown begins. Observe the combustion phenomena (e.g., surface ignition, burning to the marked line).

Data Recording: Save the data after the experiment, turn off the gas, and check the sample's combustion status (e.g., remaining length, whether dripping material ignites the filter paper).

IV. Safety and Maintenance

Operating Procedures: Avoid putting hands into the test furnace, and do not stack flammable materials around the equipment. Stop the machine immediately in case of any abnormalities.

Regular Calibration: Calibrate the heat load uniformity (4-point temperature difference ≤ 15℃) and wind speed (5-point measurement error ≤ 10%) every 3 months.
