Measures finished shoe and sole flexing resistance by repeated bending per standards.
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

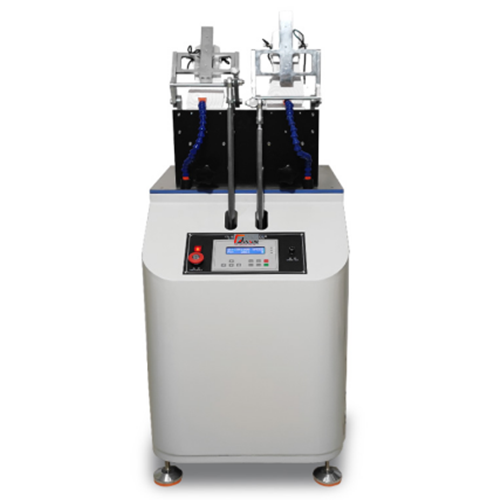

The Shoe Bending Tester is designed to evaluate the flexing resistance and durability of finished shoes and sole materials. By applying repeated reciprocating bending at fixed angles and frequencies, the tester measures folding performance and monitors crack initiation or growth, providing objective data for quality control and footwear development.
(1)Testing bending resistance of finished shoes, including sports, casual, and work footwear.
(2)Assessment of sole material durability, including rubber, EVA, and synthetic soles.
(3)Quality control in footwear manufacturing to ensure consistent product performance.
(4)Research and development of new footwear designs or sole materials.
(5)Evaluation of aging effects on footwear under repeated flexing conditions.
(6)Applicable in laboratories, footwear factories, and quality inspection agencies.
(1)GB/T 3903.1 — Footwear Flexing Test Method
(2)HG/T 2871-2008 — Finished Shoe Flexing Test Standard
(3)QB/T 4329-2012 — Whole Shoe Bending Resistance Test
(4)EN ISO 20344 — Personal Protective Equipment — Footwear Test Methods
(5)ASTM F1614 — Standard Test Method for Flexing Resistance of Footwear
(1)Reciprocating bending mechanism for repeated flexing of shoes or sole specimens.
(2)Fixtures capable of holding finished shoes or sole materials securely.
(3)Simultaneous testing of one pair of shoes or two sole samples to increase throughput.
(4)Adjustable bending angle from 10° to 50° to control flexing degree.
(5)Variable flexing speed from 5 to 300 cycles per minute for different test protocols.
(6)LCD digital counter to record up to 999,999 flexing cycles.
(7)Robust construction suitable for long-term fatigue testing.
(8)Precision control ensures reproducible and consistent test results.
| Item | Specification |
|---|---|
| Specimen | One pair of shoes (two individual shoes) simultaneously |
| Bending angle | 10–50° adjustable |
| Flexing speed | 5–300 cycles per minute adjustable |
| Counter | LCD, 0–999,999 cycles |
| Power supply | AC220V, 3A |
| Dimensions | 450 × 650 × 1500 mm |
(1)Fixture set for finished shoes
(2)Optional sole material clamps
(3)Power cable and user manual
(1)Secure the test shoes or sole specimens in the designated fixtures.
(2)Set the desired bending angle and flexing speed according to the test standard.
(3)Start the machine and allow the reciprocating bending mechanism to operate for the preset number of cycles.
(4)Monitor the LCD counter to track the number of flexing cycles completed.
(5)Inspect the shoes or soles for signs of cracking or damage after testing.
(6)Record the results for performance evaluation or compliance verification.
(1)Clean the machine and fixtures after each test to remove dust or debris.
(2)Check moving parts and lubricate periodically to maintain smooth operation.
(3)Inspect electrical connections and control components regularly.
(4)Store in a dry, stable environment to prevent corrosion.
(5)Handle fixtures and specimens carefully to ensure measurement accuracy.
