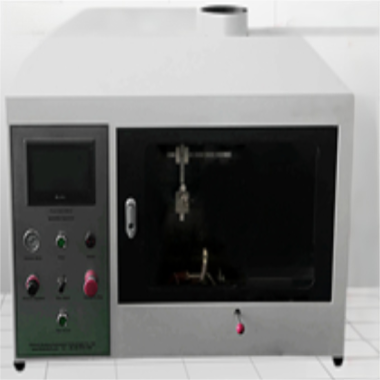

Single-Flame Source Tester En ISO 11925-2

Introduction

This instrument is designed according to ISO 11925-2. it is used to test building material under conditions in the absence of external radiation to direct impact of vertically placed samples with a small flame to determine the flammability of building products.

Standards

EN ISO 11925-2;

DIN 53438;

DIN4102-1;

Structure

1. Box paint treatment, beautiful;

2. The combustion chamber dimensions: length 700mm X width 400mm X high 600;

3. The flame height can be adjusted, automatic ignition;

4. The flame burning application time and hold time can range from 0 to 99 minutes 99 seconds regulation;

5. Combustion angle: 0 ° (vertical), 45 °；

6. The burner can be moved in a horizontal direction;

7. Glass doors for easy observation test;

8. All fixtures are made of stainless steel; beautiful and corrosion;

9. Equipped with two types of stainless steel sample holder. With flame height measuring;

10. High degree of test automation, test data accurate, easy to operate.

Control System

• Programmable Logic Controller (PLC) Control;

• Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection;

• LCD touch screen display;

• Real-time monitoring of experimental data, queries six samples of experimental data, query alarm content.
