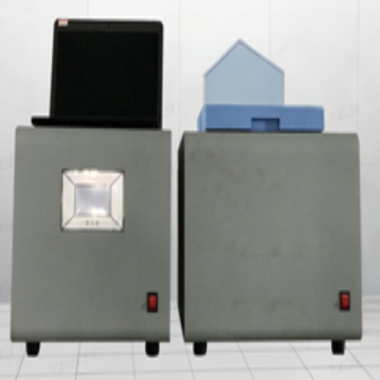

Bomb Calorimeter, En ISO 1716

Standard:

• ISO 1716

Main Features:

1. The apparatus including: calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software; Crucible made of stainless steel;

2. Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;

3. Ignition wire break is detection,and automatic ignition;

4. The test procedure automatically turn off;

5. Test abnormalities has sound alarm;

6. Computer control system;

7. Control box with USB / RS232 serial port with an external brand desktop or laptop operating control; High degree of automation, test procedure safe and reliable, easy to operate;

Specification:

1. Bomb capacity: (300 ± 50) mL;

2. Oxygen bomb pressure range: 0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa;

3. Timer: accuracy of 0.5s;

4. Maximum power: 0.5KW;

5. Ambient temperature: (10 ~ 35) ºC, humidity ≤80%;

6.Heat capacity of the instrument: about 10000J / K;

7. Heat repeatability error: ≤0.2%;

8. Temperature range: (4.5-50) ºC;

9. Temperature detection: 0.0001 ºC resolution, using the PT100 sensor;

10. Inner cylinder volume: 2000ml; Oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage;

11. Motor power: 3W; stirring speed: the inner tube (375r / min);

12. Power supply voltage: AC220V ± 10% 50Hz.
