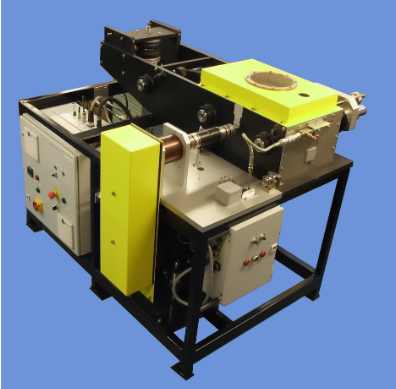

STD-RCF 4 Rolling Contact Fatigue & Bearing Friction Rig may be used for both endurance testing and precision bearing frictional loss measurement. Two test assemblies are available:
• combined radial and axial loading
• bi-directional axial loading
Load is applied by means of servo controlled pneumatic bellows with force transducer feedback.
An in-line torque transducer is provided for friction measurement, with a maximum permissible speed of 10.000 rpm.
Bearing outer race temperatures are measured with thermocouples and a vibration sensor with adjustable level trigger circuit is provided for stopping the machine at the on-set of rolling contact fatigue.
An integral lubricant service module is fitted as standard incorporating a sump tank with immersion heater, delivery pump, scavenge pump, oil to water heat exchangers for cooling and change-over filters.
| Technical Specifications | |
| Motor: | 4 kW a.c. vector motor and drive with encoder feedback |
| Maximum Motor Speed: | 3.000 rpm |
| High Speed Drive: | Flat belt |
| Ratio: | 6.7:1 |
| Low Speed Drive: | Timing belt |
| Ratio: | 1:2 & 2:1 |
| Maximum Spindle Speed: | 10.000 rpm |
| Torque Transducer Range: | 50 Nm |
| Maximum Lubricant Supply Rate: | 6.8 l/min |
| Maximum Lubricant Supply Temperature: | Ambient to 150°C |
| Change-over Filters: | 3 micron |
| Interface: | Phoenix Tribology USB micro-controller interface |
| Software: | COMPEND 2020 |
| Controlled Parameters | Motor speed |
| Applied loads | |
| Test fluid temperature | |
| Test duration | |
| Recorded Parameters | Motor speed |
| Applied load | |
| Total bearing friction | |
| Lubricant inlet temperature | |
| Bearing outer race temperatures | |
| Vibration sensor output | |
| RCF 4/1 Combined Radial and Axial Loading | |
| Configuration: | Four bearing back-to-back |
| Bearing Types: | Taper, spherical, cylindrical roller, angular contact, deep groove ball |
| Shaft Diameters: | 40 mm to 65 mm |
| Maximum Bearing Outside Diameter: | 140 mm |
| Maximum Axial Load per Bearing: | 16 kN |
| Maximum Radial Load per Bearing: | 40 kN |
| Maximum Axial Load: | 16 kN |
| Maximum Radial Load: | 80 kN |
| RCF 4/2 Test Assembly – Bi-directional Axial Loading | |
| Configuration: | Two deep grove ball bearings back-to-back |
| Bearing Types: | Deep grove and angular contact (uni-directional loading) |
| Shaft Diameters: | 20 mm to 40 mm |
| Maximum Bearing Outside Diameter: | 90 mm |
| Maximum Axial Load Per Bearing: | 4 kN |
| Maximum Axial Load: | 4 kN |
| Services | |
| Electricity: | 415 V, three phase, 50/60 Hz, 7.5 kW |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) |
| Mains water and drain: | 10 l/min (typical) |
