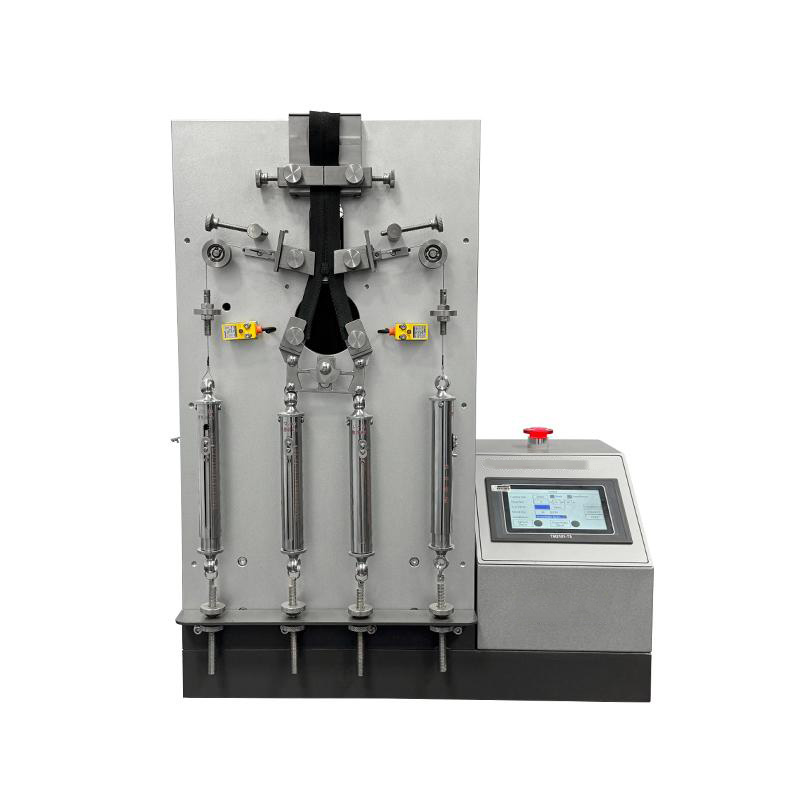

Integrated Zipper Strength Tester

Meet the standard:

ASTM D2061 ASTM D2060

BS 3084  JIS S3015

DIN 3419

Product Introduction:

The mechanical strength of a zipper's components is crucial for its reliable function and durability in end products. An Integrated Zipper Strength Tester allows manufacturers and quality control laboratories to quantify these strengths according to established international standards.

The tester typically utilizes a universal testing machine frame or a dedicated test stand equipped with a precision load cell to measure applied forces. A key feature of an integrated tester is its range of interchangeable gripping and clamping fixtures specifically designed for different zipper strength tests. These fixtures allow precise application of force to specific parts of the zipper assembly, such as:

Slider Pull Strength: Measuring the force required to pull the slider off the chain or damage the slider body.

Top Stop Holding Strength: Measuring the force required to pull the slider through the top stops.

Bottom Stop Holding Strength: Measuring the force required to pull the zipper chain apart at the bottom stop.

Crosswise Strength (Lateral Strength): Measuring the force required to pull the two halves of a closed zipper chain apart perpendicularly to the chain.

Element Pull-Off Strength: Measuring the force required to pull a single element from the zipper tape.

The tester applies force at a controlled rate until the zipper component fails (breaks, pulls off, or deforms beyond specification). The maximum force recorded at the point of failure is the strength value for that specific test. Automated versions can control the test speed, detect failure automatically (e.g., by a sudden drop in force), record force-displacement data, and generate test reports. By consolidating multiple tests into one instrument, the integrated tester improves efficiency and streamlines the quality control process for zippers.

Product Advantages:

Performs multiple key zipper strength tests using a single instrument for efficiency.

Provides objective, quantitative data on the mechanical strength of zippers and components.

Essential for ensuring zipper durability and preventing structural failures in use.

Helps ensure compliance with international zipper strength standards (ASTM D2061. BS 3084).

Useful for quality control, product development, and material comparison.

Offers precise force application and accurate strength measurement.

Product Features:

Based on typical Integrated Zipper Strength Testers:

Robust test frame (universal testing machine style or dedicated stand) capable of applying tensile forces.

High-precision load cell for accurately measuring the applied force throughout the test.

Multiple, interchangeable gripping and clamping fixtures specifically designed for performing various zipper strength tests (e.g., slider pull fixture, crosswise clamps, top/bottom stop fixtures).

Motorized or manual crosshead movement mechanism to apply force at a controlled speed or displacement.

Digital display showing real-time force and potentially displacement.

Automated control system (for motorized versions) for setting test parameters (speed, force/displacement limits) and controlling the test sequence.
