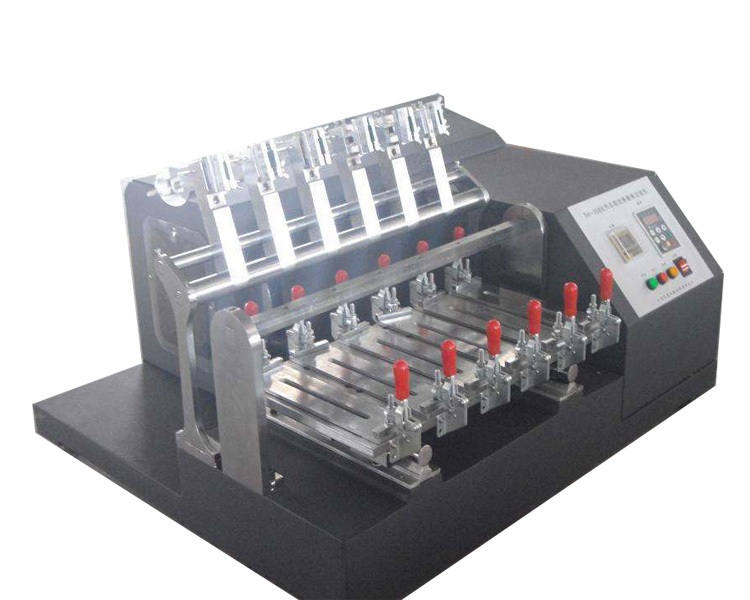

Automobile Sealing Strip Wear Test Machine

The TL52057 automotive sealing strip abrasion tester is a professional device specifically designed to evaluate the abrasion resistance of sealing strips. Through reciprocating or rotating friction, it accurately reproduces the friction scenarios (such as opening and closing doors, driving vibrations) of sealing strips in actual use.

Application

Automobile manufacturing companies:

Conduct quality inspections on purchased sealing strips during the production process to ensure that the sealing strips used in their products meet quality requirements and improve the quality of the entire vehicle.

Sealing strip manufacturers: Used for product research and development and quality control, by testing the wear resistance of sealing strips produced by different formulas and processes, optimize production processes and product design, and improve product competitiveness.

Third-party testing agencies:

provide professional and impartial testing services to automobile manufacturers and sealing strip suppliers, issue authoritative testing reports, and provide objective basis for product quality.

Scientific research institutions:

used for related scientific research projects, research on the wear resistance of new sealing materials, explore methods and technologies to improve the wear resistance of sealing strips, and promote the development of automotive sealing technology.

Standard Test

The automotive abrasion testing machine can meet various domestic and international standards:

For example, the PV3313 abrasion standard in Volkswagen's TL52057 and TL52417 technical standards (Germany),

and the PV3366 abrasion standard in the TL52641 technical standard, a standard of the Chinese Automotive Industry Department,

QC/T711-2004 Test Method for Abrasion Resistance of Flocked Automotive Sealing Strips (National Standard),

GB/T21282-2007 Abrasion Test Standard for Various Automotive Sealing Strips, including Rubber and Plastic Sealing Strips for Passenger Cars.

Feature

1. The friction head support is a straight up-and-down mounting bracket. The weights are directly mounted on the friction head support, and the required mass should be the total mass of the weights plus the friction head and the bracket. (Same as similar products from Germany)

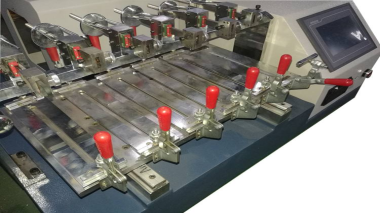

2. The test sample is fixed on a flat plate with grooves, and the plate is secured at both ends with elbow clamps to hold and press the sample during testing.

Parameters

Accessoriess

Standard accessories: compatible with PV3313/PV3366 standards, made of wear-resistant rubber,flat pressing block + side clamps, suitable for seal strip samples,1 set each of 250g, 500g, for general load requirements,Abrasion head fixing screws,Operation manual & qualification certificate,Equipment leveling feet (4 pcs)Power cord (compatible with 220V power supply).

Optional accessories:Special fixtures for profiled seal strips (for curved strips like door/trunk seals),Custom abrasion heads (e.g., rubber heads of different hardness, metal heads, for special test standards),Extended weights (1000g, 3000g, for high-load testing),Data acquisition software (records friction cycles, abrasion loss, etc.),Spare abrasion heads (wear part, ensures continuous testing),Sample positioning ruler (improves sample installation accuracy).

Maintenance Information

1. Daily Maintenance

Wipe the fixture/sample table with a dry cloth after each test to remove dust/debris.

Check the tightness of abrasion head screws; re-tighten if loose.

2. Regular Maintenance (Every 3 Months)

Lubricate the vertical motion guide rail with light machine oil.

Calibrate the weight load accuracy with a precision scale.

3. Abrasion Head Replacement

Replace the abrasion head when its surface wear exceeds 1mm (to ensure test consistency).

4. Troubleshooting

If the friction speed is unstable: Check the drive motor’s connection and clean the transmission parts.
