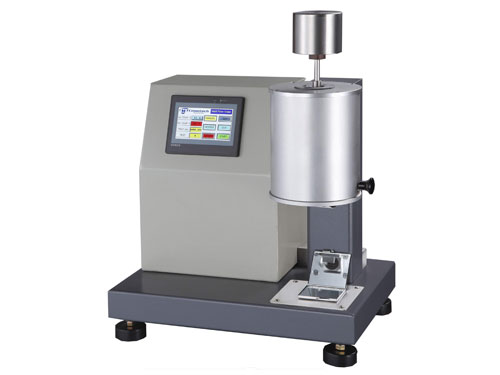

Melt Index Tester

The Melt Index Tester (Melt Flow Rate Meter) is a precision instrument for evaluating the flow properties of thermoplastic materials under specified conditions. By automatically extruding polymer melts through a standardized die and measuring the mass or volume flow, it determines the Melt Flow Rate (MFR), providing critical information on polymer processability, molecular weight, and quality control. The instrument supports both manual and automated testing, with accurate temperature control and built-in data output.

Application

(1) Measurement of melt flow properties for engineering plastics including fluoroplastics, nylon, and polyoxymethylene (POM).

(2) Testing low-melting-point thermoplastics such as polyethylene (PE), polypropylene (PP), polystyrene (PS), ABS resin, and polycarbonate.

(3) Quality control in plastic production and manufacturing to ensure consistent polymer performance.

(4) Research and development of new polymer formulations and compounding.

(5) Petrochemical industry applications for raw material evaluation.

(6) Educational and research laboratories in colleges and universities for polymer science studies.

(7) Commodity inspection and testing institutions for certification and compliance testing.

Standards

(1) ISO 1133 – Plastics – Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics.

(2) ASTM D1238 – Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer.

(3) GB/T 3682 – Plastics – Determination of the melt flow rate (MFR).

(4) JIS K7210 – Japanese Industrial Standard for measurement of thermoplastic melt index.

(5) Additional industry-relevant ISO and ASTM standards for polymer characterization and processability assessment.

Features

(1) Rapid heating with minimal temperature overshoot for consistent test conditions.

(2) High-accuracy PID temperature control (±0.1°C) with over-temperature protection.

(3) Automatic recovery to constant temperature after sample loading.

(4) Supports both manual and automatic cutting methods for test sample extrusion.

(5) Built-in Chinese LCD display with intuitive interface.

(6) Integrated printer for automatic result output.

(7) Reliable, stable operation with precise, repeatable measurements.

Parameters

Accessories

(1) Mercurial thermometers (150°C, 200°C, 250°C, 300°C optional).

(2) Cleaning brush and scraper.

(3) Guide material stick.

(4) Observation mirror.

(5) Feedstock funnel.

(6) Three frictioning steel discs.

(7) Two thin hole pattern determination gauges.

Test Procedures

(1) Preheat the cylinder to the required test temperature.

(2) Load the polymer sample into the cylinder and allow it to reach thermal equilibrium.

(3) Apply the specified weight on the plunger for extrusion.

(4) Start the automatic or manual cutting mechanism as per the test method.

(5) Measure the mass or volume of extruded polymer in the defined time interval.

(6) Record results and calculate the Melt Flow Rate (MFR) according to standard formulas.

(7) Repeat tests as needed for multiple samples or repeatability verification.

Maintenance Information

(1) Keep cylinder, plunger, and die clean after each test to prevent residue build-up.

(2) Calibrate weights and temperature sensors periodically.

(3) Inspect cutting mechanism and lubricate moving parts regularly.

(4) Store instrument in a dry, stable environment to prevent corrosion.

(5) Check printer and display functionality before daily operation.

FAQ

1.What is a Melt Index Tester?

A Melt Index Tester is a specialized instrument used to measure the flow rate of thermoplastics when subjected to heat and pressure. It quantifies the plastic's melt flow index (MFI) or melt flow rate (MFR), indicating how easily the material can flow when melted. This property is crucial for manufacturers to understand the processing characteristics of polymers before extrusion or molding.

2.How does a Melt Index Tester work?

The Melt Index Tester works by heating a sample of thermoplastic material to a specific temperature, then applying a weight on top. The melted plastic flows through a standardized orifice over a defined period. The amount of material extruded during this time is measured, providing the melt flow index, which is expressed in grams per 10 minutes. This process helps assess the material's viscosity and processability.

3.Why is Melt Flow Index important?

The Melt Flow Index is important because it helps manufacturers select suitable polymers for their applications based on processing behavior under heat and pressure. A higher MFI indicates lower viscosity, suggesting the material may be easier to process, whereas a lower MFI indicates higher viscosity. This information is essential for ensuring product quality, consistency, and performance in end applications.

4.What types of materials can be tested using a Melt Index Tester?

A Melt Index Tester can be used with a variety of thermoplastic materials, including polyethylene, polypropylene, polystyrene, polyvinyl chloride (PVC), and more. Each material has different melting characteristics and flow rates, making MFI testing critical for plastics manufacturers to optimize their processing conditions and formulations.

5.What are the key specifications of a Melt Index Tester?

Key specifications of a Melt Index Tester include temperature control accuracy, weight options for applied pressure, orifice size, and measurement precision. Additionally, features like digital displays, data logging capabilities, and ease of calibration are important to ensure reliable and reproducible results during testing.

6.How do I choose the right Melt Index Tester for my needs?

Choosing the right Melt Index Tester depends on your specific testing requirements, including the types of materials you work with, required temperature ranges, and desired level of precision. Consider factors like ease of use, maintenance, software integration for data analysis, and support from the manufacturer to ensure you select an instrument that provides accurate and consistent results.
