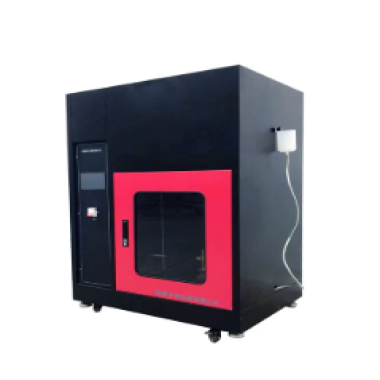

Alcohol burner combustion tester

Technical parameters:1. Combustion time :0——9999 seconds can be set arbitrarily, the standard uses 3

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

This tester is developed and manufactured in accordance with Alcohol burner combustion tester; The instrument is suitable for non-metallic products for coal mining under laboratory conditions to do the alcohol burner combustion test burning test;


features:

1. Alcohol burner fit to standard required;

2. Burning time is recorded automatic;

3. The flame height can be adjusted;

4. With a special exhaust system, exhaust gas discharged automatically.


Standard:

MT182

MT141

MT914


Technical parameters:

1. Combustion time :0——9999 seconds can be set arbitrarily, the standard uses 30 seconds;

2. Flame and blazing time timer :0——9999 seconds, accuracy :+0.1 seconds;

3. Combustion test chamber size :660mmx660mmx1065mm;

4. Fuel :5%(V/V) methanol and 95%(V/V) ethanol mixture;

5. Flame height :150mm——180mm, adjustable;

6. Fuel consumption :2.55±0.15mL/min.

7. Alcohol blowtorch: hanging type;

8. Automatic timing of burning time;

9. Automatic timing of open flame and blazing time

10. Flame height adjustable.

11. Steel plate electrostatic spraying box, with ventilation device

12. Pure copper fire nozzle, equipped with preheating tank, preheating operation is simple.

13, equipped with a flame adjustment device, can test the flame height according to the standard requirements,

14. Equipped with firehead manual handle, moving the firehead is safe and convenient,

15. The inner box is pure black (the standard requires the inner box to be dark)

16. Fuel :5%(V/V) methanol and 95%(V/V) ethanol mixture (customer's own);

17. Weight :60KG Packing volume :0.85 cubic meters
