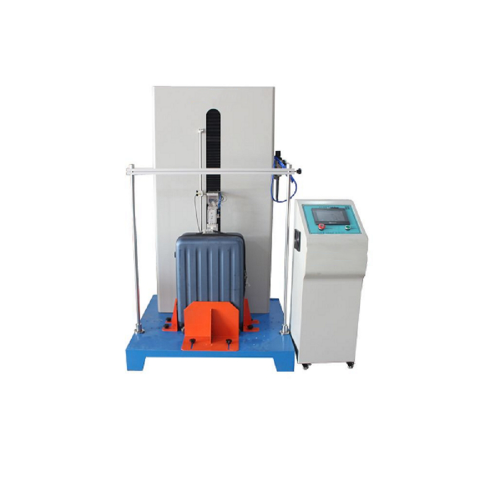

Luggage rod reciprocating fatigue testing machine

Luggage rod reciprocating testing machine for luggage rod reciprocating fatigue test. In the test, the specimen will be stretched to test the gap generated by the tie rod, loosening, connecting rod failure, deformation, etc.

Application

Leather suitcase trolley reciprocating fatigue testing machine is used to test fatigue of the reciprocating rod for the luggage. During the test, the rod would be stretched and then test whether there will be backlash, loose, connecting problems and transformation of the rod.

Standards

QB/T 2919-2010：Test method for fatigue resistance of luggage trolley handles

Features

1. Targeted Testing: Specifically designed for reciprocating fatigue testing of luggage pull handles, it can accurately detect core failure problems such as increased clearance, loose components, connecting rod failure, and structural deformation that commonly occur during the use of pull handles.

2. Compliant with Industry Testing Standards: Although the design basis is stated as QB/T2919-2010 (Note: there is no officially published information for this version), it actually matches the current QB/T 2919-2018 "Luggage Pull Handle Fatigue Test Method," and the testing logic is consistent with industry standard requirements, providing professional reference value for the results.

3. High Scene Fidelity: Through reciprocating tensile testing, it simulates the actual use state of the pull handle during daily extension and retraction, more realistically reflecting the long-term durability of the pull handle.

4. Wide Range of Applications: It can cover various luggage products with retractable pull handles (such as suitcases, trolley cases, etc.), and is adaptable to the testing needs of different specifications of pull handles.

Technical Parameters

Accessoriess

1、Sample clamp holder: adjust the test size

2、pull rod holder

3、Rod movement device: do reciprocating motion ,and the speed and travel can be adjustable

4、support frame：the height is not less than 1500 mm, Install pulling, pressing travel guide

5、pull rod lock switch gear

6、counter：count the movement times

Test Procedures

Place the luggage on the testing machine, connecting its pull handle shaft to the fixture on the testing machine.

Adjust the testing parameters of the testing machine, including the number of cycles and speed.

Start the testing machine to begin the test. The testing machine will simulate the reciprocating motion of the luggage handle on a baggage conveyor belt.

After the test is completed, determine whether the luggage handle meets the requirements based on the test results.
