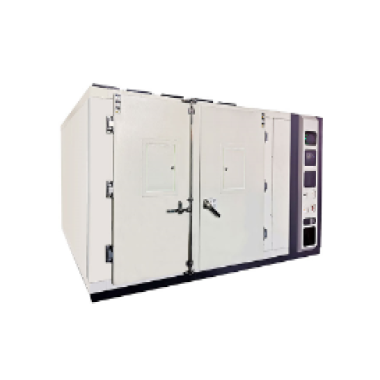

Purpose:The equipment provides a light source close to natural light, and the BBA class large area s
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval
IEC 61646: Thin-Film Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval
ISO 9060: Solar Energy – Classification of Pyranometers
CE Certification (Conformité Européenne)
BBA-Grade Performance
Class B Spectral Matching: Ensures AM1.5G compliance for accurate energy rating.
Grade B Irradiance Uniformity: <5% deviation across 2.0m × 1.0m test area.
Multi-Mode Testing
STC/NOCT/Hotspot Simulation: Replicates standard test conditions, nominal operating cell temperature, and thermal runaway scenarios.
1.000 W/m² Tuneability: Adjustable irradiance for low-light performance mapping.
Stability First
Class A Transient Stability: <2% flicker during pulsed load testing.
Metal Halide Lamp Longevity: 5.000-hour lifespan with <10% lumen depreciation.
Smart Control
AI-Powered Irradiance Correction: Compensates for lamp aging in real-time.
Remote Calibration: Wi-Fi/Ethernet connectivity for ISO 17025 compliance.
Safety First
UV Filter: Blocks harmful UVC radiation during operator access.
Emergency Shutoff: Dual redundant safety circuits with GPS-enabled alerts.
2.0m × 1.0m Test Area: Accommodates full-size 72-cell modules and small BIPV panels.
6-Axis Robotic Arm: Automates IV curve tracing and EL imaging positions.
10” Sunlight-Readable HMI: Preloaded IEC 61215/61646 test sequences with customizable dwell times.
Self-Cleaning System: Automated lamp housing purging for dust-free operation.
Modular Design: Expandable from 1 kW to 10 kW for pilot-scale production lines.
Testing Kit:
4x PV module test fixtures (adjustable for frameless/framed modules).
10x Type T thermocouples with ceramic insulation.
Software Suite:
License key for SolarSim Pro (Windows/Linux).
1-year free access to cloud-based PV simulation tools.
Calibration & Safety:
NIST-traceable irradiance meter.
UV safety goggles (Class 1. 3 pairs).
Maintenance Kit:
Spare metal halide lamps and igniters.
Lamp cleaning solution (non-corrosive).
Documentation:
Multilingual quick-start guide (printed + digital).
Compliance certificates for IEC/UL/ISO standards.
| Parameter | Specification |
|---|---|
| Irradiance Range | 200–1.200 W/m² (AM1.5G filtered) |
| Spectral Matching | Class B (IEC 60904-9) |
| Uniformity | Grade B (<5% deviation) |
| Stability | Class A (<2% transient flicker) |
| Lamp Type | Metal Halide (400 nm–1.100 nm output) |
| Test Area | 2.000mm (W) × 1.000mm (D) |
| Power Supply | 380V/415V 3-phase, 50/60Hz |
| Dimensions | 2.500mm (W) × 1.500mm (D) × 2.200mm (H) |
| Weight | 1.800 kg (net) / 2.500 kg (gross) |
