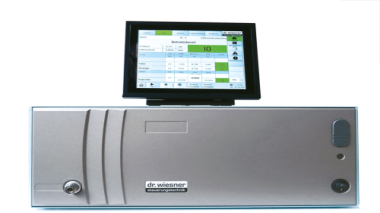

Swimming goggles sealing tester

The Swimming Goggles Sealing Tester is a specialized test instrument designed to evaluate the watertightness and sealing performance of swimming goggles in accordance with ISO 18527-3.

The equipment provides a controlled and objective method to assess the resistance of goggle seals against the ingress of liquids, gases, and vapors. It is suitable for laboratory testing, production-line quality control, and product development.

The tester utilizes a standardized test head and controlled vacuum or pressure system to detect leakage through pressure decay over a defined test period, ensuring compliance with international safety and performance standards.

Application

(1) Swimming Goggles: Adult swimming goggles, children’s swimming goggles, competition goggles.

(2) Protective Sports Goggles: Training goggles, recreational water-sport goggles.

(3) Medical & Protective Goggles: Splash-protection goggles, laboratory eye protection with sealing requirements.

(4) Industrial Protective Eyewear: Chemical splash goggles, dust-tight safety goggles.

(5) R&D and Product Development: Development and optimization of goggle frame designs, sealing structures, and cushion materials.

(6) Production Quality Control: In-line or batch testing to ensure consistent sealing integrity during manufacturing.

(7) Certification & Compliance Testing: Verification of product conformity with ISO and EN standards prior to market release.

Standards

(1) ISO 18527-3 — Personal Eye Protection — Swimming Goggles — Sealing Performance

(2) EN 14325 — Protective Clothing Against Chemicals — Test Methods (Autoclave Testing)

(3) ISO 4007 — Personal Eye Protection — Industrial Eye Protectors (Related Sealing Concepts)

(4) ISO 13688 — Protective Clothing — General Requirements (Referenced for Material Performance)

(5) ISO 7504 — Eye Protectors — Optical Test Methods (Supporting Standard)

(6) Other national or customer-specified sealing and permeability test standards (optional configuration)

Features

(1) Standardized test head fixture designed to simulate human facial contours for secure goggle mounting.

(2) Dual test stations enabling simultaneous left and right goggle testing.

(3) Controlled vacuum generation system for negative pressure sealing tests.

(4) High-accuracy pressure sensor for precise monitoring of pressure decay.

(5) Automated leakage detection based on pressure loss over time.

(6) PLC and touchscreen-based control system for intuitive operation.

(7) Programmable test time to meet different standard requirements.

(8) True-color LCD touchscreen for real-time display of pressure and test status.

(9) Suitable for rapid testing, supporting production-line quality control.

Technical Parameters

Accessories

(1) Standardized goggle test head fixture

(2) Silicone sealing cushion

(3) Integrated vacuum pump

(4) PLC control unit

(5) Touchscreen human–machine interface

(6) Vacuum and pressure sensing module

Test Procedures

(1) Mount the swimming goggles securely onto the standardized test head.

(2) Ensure proper alignment and sealing between the goggles and the test head.

(3) Select the test parameters (vacuum level and test duration) via the touchscreen.

(4) Apply negative pressure to the sealed goggle volume.

(5) Monitor pressure decay over the specified test period.

(6) Determine pass/fail results based on the allowable pressure loss defined by the standard.

(7) Record and export test results as required.

Maintenance Information

(1) Clean the test head and silicone cushion after each testing cycle.

(2) Periodically inspect the vacuum pump and pressure sensors for proper operation.

(3) Calibrate the pressure sensor at regular intervals to maintain accuracy.

(4) Check seals, tubing, and connectors for leaks or wear.

(5) Maintain the control system and touchscreen to ensure stable long-term operation.
