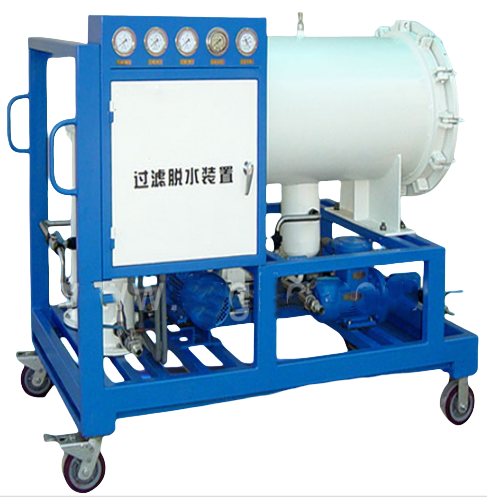

Hydraulic Oil Filtration and Dehydration Unit

The Hydraulic Oil Filtration and Dehydration Unit is an integrated oil purification system that combines filtration, dehydration, degassing, and demulsification functions. You can use this equipment to remove solid contaminants, water, and gases from hydraulic and lubrication system oils during operation. By combining multi-stage precision filtration with physical dehydration technology, the unit effectively improves oil cleanliness, extends the service life of hydraulic components and lubricated parts, and ensures reliable and stable system performance.

Application

You can apply this unit in the following scenarios:

(1) Online or offline purification and filtration of hydraulic system oil;

(2) Removal of free and dissolved water from hydraulic oil;

(3) Degassing of hydraulic oil to reduce cavitation risk;

(4) Demulsification and regeneration of lubrication system oil;

(5) Maintenance of hydraulic and lubrication systems in industrial equipment, construction machinery, metallurgy, and power sectors.

Standards

You can operate this unit in compliance with the following standards:

(1) GB/T 18854-2015 – Hydraulic transmission: Determination of solid particle contamination levels in hydraulic oil;

(2) GB/T 14039-2002 – Hydraulic transmission: Oil contamination control and monitoring;

(3) GB/T 4207-2012 – Determination of water content in mineral-based lubricating oils;

(4) ISO 4406:2017 – Hydraulic fluid power: Coding of solid particle contamination levels;

(5) ISO 4407:2002 – Hydraulic fluid power: Particle counting method for contamination measurement;

(6) ISO 9110:1990 – Hydraulic fluid power: Filter performance test methods.

Parameters

Features

Dual-motor driven gear pump ensures smooth operation, low noise, strong self-priming, and stable performance.

High-pressure piping is equipped with overflow protection to prevent overpressure operation.

Thermal relay protection prevents motor overload and damage.

Suction inlet equipped with a coarse filter protects the pump and extends the life of precision filters.

Two-stage precision filtration rapidly improves oil cleanliness.

Filter precision is selectable to meet different operating conditions.

Integrated panel pressure gauges allow real-time monitoring of system status and filter contamination.

Accessories

(1) Dedicated Gear Pump – Dual pump configuration for stable flow.

(2) Coarse Filter – 100 μm.

(3) First-Stage Precision Filter – 25 μm / 40 μm.

(4) Second-Stage Precision Filter – 3 μm / 5 μm / 10 μm.

(5) Motor – Dual-motor drive.

(6) Pressure Gauge – System pressure monitoring.

(7) Overflow Valve – Overpressure protection.

(8) Heating System – Independent heating module for low-temperature operation.

(9) Consumable Filter Elements – Replaceable as needed.

Test Procedures

Ensure oil hoses are connected correctly and inlet/outlet valves are open.

Check power supply, motor status, and protection devices.

In low-temperature environments, start the heating system to bring oil to the required viscosity before operation.

Monitor pressure gauges during operation to avoid overpressure.

Replace filter elements promptly if the differential pressure rises significantly.

Before shutdown, close the inlet valve, depressurize the system, and then cut off the power.

Maintenance Information

Regularly inspect hoses, filter elements, and protection devices for wear or damage.

Replace filter elements according to operating hours or differential pressure readings.

Clean the system periodically to prevent sediment buildup.

Verify operation of the heating system and overflow protection before each use.

Record operation data to monitor system performance over time.

FAQ

1.What is this product?

It is a hydraulic oil purification unit that filters, dehydrates, degasses, and demulsifies oil.

2.What is this product used for?

You use it to remove contaminants, water, and gases from hydraulic and lubrication oils to maintain system performance.

3.How does this product work?

Oil is drawn through a coarse filter, then passes through multi-stage precision filters. Water and emulsified substances are separated physically, restoring oil cleanliness and performance.

4.Why is this product important?

It protects hydraulic and lubrication system components, extends their service life, and ensures safe, reliable operation of the equipment.

5.Which industries is this product suitable for?

It is suitable for construction machinery, industrial hydraulic systems, metallurgy, power generation, and other sectors requiring high oil cleanliness and maintenance.
