Measures the tensile strength and elongation of face mask materials and components.
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

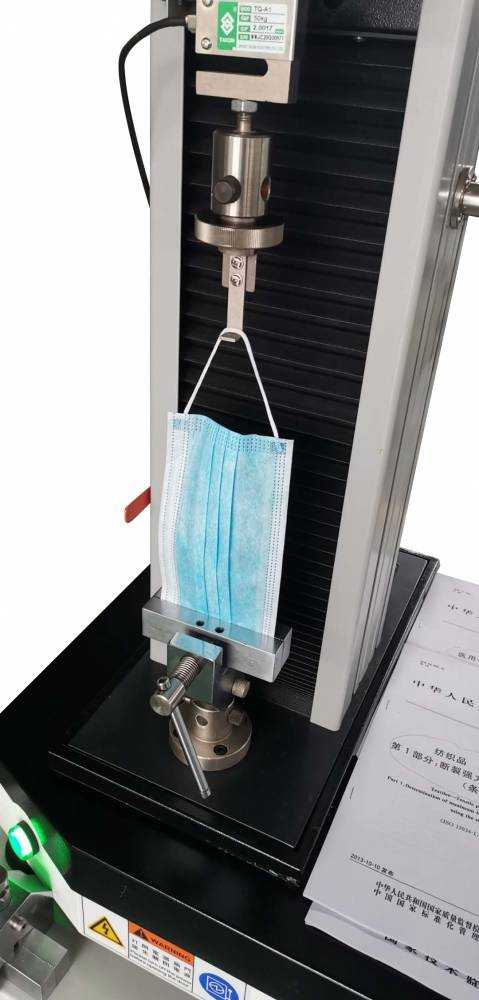

The Face Mask Tensile Tester is designed to measure tensile strength, elongation at break, and related mechanical properties of various textiles and materials. The instrument integrates a motor with a speed control system, driving a synchronous belt deceleration mechanism and lead screw pair to apply controlled loads. It features a load measuring system and a deformation measuring system, with real-time display of control parameters and measurement results on an LCD screen. The tester provides overload protection, precise displacement measurement, and versatile testing capabilities for textiles, automotive interior materials, zippers, and leather.
The Face Mask Tensile Tester is suitable for mechanical property evaluation across the following industries and products:
(1) Medical and Healthcare Industry: surgical masks, medical face masks, N95/FFP masks, disposable masks — tensile strength and elongation testing
(2) Textile Industry: woven fabrics, knitted fabrics, nonwoven fabrics, coated fabrics — tensile, elongation, and mechanical performance testing
(3) Automotive Industry: seat covers, interior textiles, leather trim, composite materials — tensile strength and elongation testing
(4) Leather and Accessories Industry: leather, zippers, straps, belts — tensile, tear, and adhesion strength testing
(5) Research and Development: development of new textile and mask materials, mechanical property evaluation, material comparison
(6) Quality Control: production batch verification, inspection of material strength and deformation properties
(7) Third-Party Testing Laboratories: certification testing, laboratory verification of textile and mask mechanical performance
The instrument is widely used for product development, production quality control, R&D, and laboratory testing.
The instrument complies with and can be applied to the following standards (including but not limited to):
(1) GB/T 32610-2016 – Technical Specification for Daily Protective Masks
(2) GB 19083-2010 – Technical Requirements for Medical Protective Masks
(3) YY 0469-2011 – Technical Requirements for Medical Surgical Masks
(4) GB 2626-2006 – Respiratory Protective Equipment: Filtered Particulate Respirator
(5) GB 2890-2009 – Test Methods for the Mechanical Properties of Textile Materials
(6) GB/T 16556-2007 – Testing Methods for Tensile and Elongation Properties of Fibers
(7) GA 124-2013 – Tensile Testing Standard for Protective Materials
(1) Easy to operate, suitable for all users
(2) High measurement accuracy, certified by third-party testing organizations
(3) High-speed, low-vibration, low-noise motor drive
(4) High rigidity design, sturdy and durable
(5) Multi-language interface for international applications
(6) Automatic return to start position after test completion
(7) Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, and tensile strength
(8) Supports tensile, bending, compression, folding, adhesion, tearing, peeling, and elongation tests
(9) Equipped with mechanical travel switch, emergency stop switch, overcurrent/overvoltage/undercurrent/undervoltage/leakage overload protection
(10) Software overload limit protection and breakpoint shutdown protection
| Item | Specification |
|---|---|
| Maximum Test Force | 100 N (optional 5000 N) |
| Operation Mode | Microcomputer, full Chinese menu |
| Measuring Range | 0 – 100 N |
| Accuracy Level | Class 1 / Class 0.5 |
| Test Force Accuracy | ±1% |
| Minimum Test Force Resolution | 0.001 N |
| Displacement Resolution | 0.01 mm |
| Deformation Accuracy | ±1% |
| Speed Regulation Range | 0.001 – 500 mm/min (infinitely variable) |
| Test Speed | 50, 100, 150, 200, 250, 300, 500 mm/min |
| Tensile Stroke | 700 mm |
| Overall Dimensions (L × B × H) | 540 mm × 280 mm × 1450 mm |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 80 kg |
Main testing unit
Synchronous belt and lead screw assembly
Load and deformation measuring system
LCD display controller
Sample clamps for textiles, masks, zippers, and leather
Power cable
Operation manual
Calibration certificate
(1) Mount the specimen in the appropriate clamps
(2) Set test parameters: test force, speed, and tensile stroke
(3) Start the automatic test via the microcomputer controller
(4) Observe real-time force and displacement on the LCD screen
(5) Record maximum force, elongation, and other calculated values
(6) Repeat tests for multiple specimens or different conditions
(7) Clean the clamps and measurement area after testing
(1) Regularly clean clamps and lead screw mechanisms
(2) Verify calibration of load and displacement sensors periodically
(3) Inspect motor, control system, and safety switches for proper operation
(4) Keep the instrument in a dry and clean laboratory environment
(5) Maintain operation manual and calibration documentation for reference
