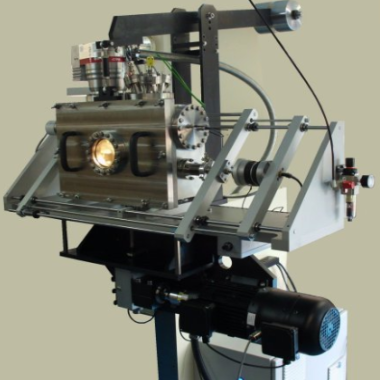

The STD-TE 76 is a two-station, vertical axis, long stroke reciprocating tribometer, which combines the reciprocating drive mechanism and fixed specimen mounting from the TE 77 High Frequency Friction Machine with a UHV test chamber.
| Contact Configurations: | Point Contact | |
| Line Contact | ||
| Area Contact | ||
| Load Range: | 5 to 500 N | |
| Laboratory Chiller: | -35°C to 150°C | |
| Temperature Sensor: | PT-100 | |
| Frequency Range: | 2 to 25 Hz | |
| Stroke Range: | See following tables | |
| Friction Transducer: | Piezo-Electric Type | |
| Interface: | Serial Link Interface Module | |
| Software: | COMPEND 2000 | |
| Motor: | 1.1 kW a.c. vector motor, 2048 ppr encoder | |
| Stroke Range | ||
| Continuously Variable Cam – 0 to 12.5 mm | ||
| Angle – degrees: | Minimum – mm | Maximum – mm |
| 0 | 0 | 2 |
| 18 | 1.04 | 3.04 |
| 36 | 2.65 | 4.65 |
| 54 | 4.25 | 6.25 |
| 72 | 5.75 | 7.75 |
| 90 | 7.09 | 9.09 |
| 108 | 8.24 | 10.24 |
| 126 | 9.17 | 11.17 |
| 144 | 9.85 | 11.85 |
| 162 | 10.26 | 12.26 |
| 180 | 10.4 | 12.4 |
| Step Variable 0 to 12.5 mm: | ||
| Angle – degrees: | Nominal Stroke – mm | |
| 0 | 0 | |
| 18 | 1.94 | |
| 36 | 3.83 | |
| 54 | 5.63 | |
| 72 | 7.29 | |
| 90 | 8.77 | |
| 108 | 10.03 | |
| 126 | 11.05 | |
| 144 | 11.79 | |
| 162 | 12.25 | |
| 180 | 12.5 | |
| Step Variable 12.5 to 25 mm: | ||
| Angle – degrees: | Nominal Stroke – mm | |
| 0 | 12.5 | |
| 18 | 13.05 | |
| 36 | 14.26 | |
| 54 | 15.97 | |
| 72 | 17.89 | |
| 90 | 19.8 | |
| 108 | 21.54 | |
| 126 | 23 | |
| 144 | 24.09 | |
| 162 | 24.77 | |
| 180 | 25 | |
| Test Chamber | ||
| Pressure: | Atmospheric to 100 Picobar (10-5 Pa) | |
| Environment: | Air, inert gas or vacuum | |
| Material: | 304 stainless steel | |
| Surface Treatment: | Glass bead blasted | |
| Viewports: | Fused Silica | |
| Electrical Feedthrough: | 1 kVolts , 15 Ampere | |
| Coaxial Feedthrough: | BNC through Flange | |
| Thermocouple: | Type K through Flange | |
| Vacuum Transducer: | Cold Cathode and Pirani | |
| Laboratory Chiller | ||
| Fluid Temperature: | -35°C to +150°C. | |
| Automatically Controlled Parameters | Frequency | |
| Load | ||
| Temperature | ||
| Chamber Pressure | ||
| Test Duration | ||
| Manually Controlled Parameter | Stroke | |
| Measured Parameters | Friction | |
| Load | ||
| Temperature | ||
| Chamber Pressure | ||
| Frequency | ||
| Friction Coefficient | ||
| . | ||
| Services | ||
| Electricity: | 220/240 V, single phase, 50/60 Hz, with neutral and earth, 4.5 kW | |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) |
