fingertip hand abrasion tester

Functionality of a product is considered as a matter of course, so the perception of quality is determined

primarily by the visual appearance. Damage to a surface by the human hand is one of the main reason for disturbance of the products quality perception.

The hand abrasion is a very complex chemical and mechanical combination. By touching a surface the human hand performs a mechanical strike followed by a push-slide force. The human hand consists of a visco elastic material containing a rough

and structured surface. In addition, sweat or hand cream creates a severe chemical environment.

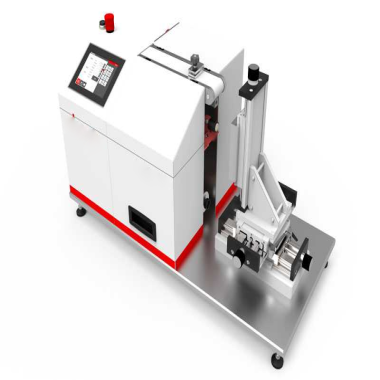

Hand Abrasion Tester / soft-chemo-mechanical fingertip & hand abrasion tester is designed to do

real life testing of finished products or lab samples in regards of resistance to hand abrasion. The

set-up of it  is exactly reproducing the complex chemo mechanical system of the human hand abrasion according to international standards.

The flexible design of the tester allows various options and delivers reproducible results.

Standards:

International Norm: EC 68-2-70

European Norm: EN 60068-2-70

German Norm: DIN 60068-2-70

Abrasion of markings and letterings caused by

rubbing of fingers and hands.

Applications

Automotive market:

- Printing on switches

- Coating of door handles

White goods:

- Printing

- Painted surface

Computer industry:

- Keyboard

- Mouse

Technical data

Normal load: 1. 5. 10 N (20N optional)

Friction path: 1 - 40mm

Number of cycles: 1 -100 million

Fluid feed: cyclic

Fabric feed: cyclic

Power supply: 110 V / 230V

YouTube video introduction:https://www.youtube.com/watch?v=eUJtIWMaR6Y
