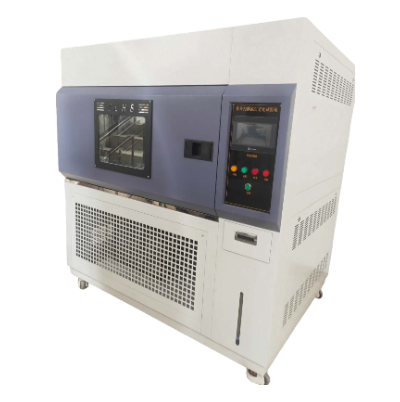

Sun and rain chamber (Rain chamber) G-4005

The G-4005 Air-Cooled Xenon Arc Aging Tester is designed to simulate full-spectrum sunlight, temperature, humidity, and rain to evaluate the weather resistance of materials. Using a 1.8 kW air-cooled long-arc xenon lamp (Q-LAB, 3 pieces), the chamber reproduces the effects of solar radiation, ultraviolet damage, high-temperature exposure, humidity, and sudden rain conditions.

It is widely used for accelerated aging tests of plastics, coatings, paints, rubbers, textiles, automotive interiors, photovoltaic components, and outdoor construction materials.

Application

The chamber provides comprehensive weathering assessments such as:

Light aging (UV + visible + IR)

Thermal aging

Humidity & condensation

Water spray / rain simulation

Black panel temperature control

Material degradation evaluation

Industries served:

Plastics & polymers

Automotive parts (interiors/exteriors)

Coatings, paints, surface treatments

Aerospace & defense materials

Rubber, adhesives, composites

Packaging materials

Solar energy components

Standards

The G-4005 Air-Cooled Xenon Arc Aging Tester complies with and supports a wide range of international test standards related to xenon arc accelerated weathering, lightfastness, humidity aging, and rain simulation. These include but are not limited to:

(1) ISO Standards

ISO 4892-2 — Plastics — Methods of exposure to laboratory light sources — Xenon-arc lamps.

ISO 105-B02 — Textiles — Tests for color fastness — Color fastness to artificial light (xenon arc).

ISO 105-B04 — Color fastness to weathering (artificial weathering using xenon arc).

ISO 11341 — Paints and varnishes — Artificial weathering and exposure to artificial radiation — Xenon arc lamps.

ISO 16474-2 — Paints and coatings — Laboratory weathering using xenon arc lamps.

ISO 4892 series — General lightfastness and weathering methods.

(2) ASTM Standards

ASTM G155 — Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials.

ASTM G151 — General practice for exposing materials in accelerated tests.

ASTM D2565 — Xenon arc exposure of plastics for outdoor weathering.

ASTM D4459 — Xenon arc exposure of plastics for indoor applications.

ASTM D6695 — Accelerated weathering of building coatings.

ASTM D4303 — Lightfastness of pigments and colorants (xenon arc).

ASTM D7869 — Xenon arc accelerated weathering of automotive exterior materials.

(3) GB / Chinese National Standards

GB/T 16422.2-2014 — Plastics — Laboratory light-source exposure methods — Xenon arc.

GB/T 1865 — Coatings — Xenon arc exposure.

GB/T 8427 — Textiles — Color fastness to artificial light (xenon arc).

GB/T 3511 — Rubber — Resistance to weathering.

(4) Automotive Industry Standards

SAE J2527 — Accelerated exposure of automotive exterior materials using xenon arc.

SAE J2412 — Accelerated weathering of automotive interior materials.

ISO 11431 — Plastics automotive components — accelerated weathering.

PV 1303 (Volkswagen) — Xenon arc climate resistance of automotive materials.

PV 3929 (Volkswagen) — Weathering test for exterior parts.

GS 95026 (BMW) — Xenon arc radiation exposure methods.

GMW 3417 (General Motors) — Weathering resistance of automotive materials.

Nissan NES M0158 — Weathering resistance using xenon arc.

(5) Other Industry Standards

AATCC 16 — Colorfastness to light (Xenon arc).

JIS B 7753 & JIS D 0205 — Xenon arc exposure of plastics and automotive parts.

ISO 4892-1 — General guidance for all xenon arc weathering tests.

IEC 60068-2-5 — Environmental testing — Solar radiation simulation.

Features

Core Features

Full-spectrum xenon lamp reproduces natural sunlight (280–800 nm).

Three xenon lamps (1.8 kW each) ensure high and stable irradiance.

Air-cooled lamp system reduces heat load and extends lamp lifespan ~1600 h.

Programmable controller (7” touch screen) with temperature, humidity, light, black panel temperature display.

Rain / spray system simulates sudden summer rainfall with adjustable cycle.

Black panel temperature control ensures accurate specimen exposure.

High-performance air circulation ensures uniform temperature & humidity.

Double-layer tempered observation window with UV protective film.

Quartz daylight filter with dual-layer filtration.

RS-232/485 interface, program editing, curve printing, data output.

Robust safety system including over-temperature, phase loss, refrigerant pressure protection.

Stainless steel internal chamber (SUS 304, mirror-finish) enhances reflectance and corrosion resistance.

Parameters

Technical Specifications – G-4005

Item	Specification
Test Chamber Volume	500 × 760 × 800 mm
Turntable Dimensions	450 × 730 mm
Overall Dimensions	1250 × 1350 × 2020 mm
Water Tank Size	400 × 300 × 400 mm
Minimum Floor Space	1500 × 1500 mm
Working Temperature Range	RT to 80°C (10°C–80°C without lamp)
Black Panel Temperature	40°C–120°C ±3°C
Temperature Fluctuation	±0.5°C
Temperature Uniformity	±2°C
Temperature Deviation	±1.0°C
Humidity Range	20%–98% RH (30–80°C)
Humidity Deviation	±3%
Rain/Water Spray Time	0–9999 min, continuous/cyclic adjustable
Spray Nozzle Aperture	0.8 mm
Rain Water Pressure	0.12–0.15 MPa
Xenon Lamp Type	1.8 kW air-cooled long-arc
Lamp Quantity	3 pcs (Q-LAB)
Heating Power	4 kW
Humidification Power	2.5 kW
Distance Lamp → Sample	100–400 mm
Wavelength Range	280–800 nm
Irradiance Control	0.3–0.8 W/m² @ 340 nm
Light/Dark Cycle	0–9999 h/min/s
Effective Irradiation Area	550 × 400 mm
Filters	Daylight filter (quartz, double-layer)
Total Power	13.5 kW
Power Supply	AC 380V, 50 Hz, 3-phase

Accessories

Standard Accessories

Quartz daylight filters

Xenon lamps (3×)

Stainless-steel sample tray

Water tank & pipelines

Black panel thermometer

Full-spectrum irradiance sensor or 340 nm sensor

Operation manual & test certificate

Safety protection set

Exhaust and drainage system

Optional Accessories

Additional filters (Window Glass, Extended UV)

External RO water purifier

Extra turntable or fixture kits

Remote monitoring software

Additional irradiance sensors (340 nm / 420 nm)

Test Procedures

1) Pre-Test Preparation

Check water tank level and drainage.

Install samples on SUS304 sample tray (≤50 kg load).

Confirm filter and lamp installation.

Ensure the chamber door is sealed properly.

2) Parameter Settings

Input temperature, humidity, irradiance, spray period, and black panel temperature.

Set light/dark cycle and total test duration.

Select the required test program on the 7” touch controller.

3) Start Test

System begins automatic heating/humidification.

Xenon lamps switch on after stabilization.

Irradiance is automatically controlled by the built-in sensor.

Rain cycle activates according to program (0.12–0.15 MPa).

4) Monitoring

Real-time display: Temperature / Humidity

Light intensity (irradiance)

Black panel temperature

Operational curves

Alarms displayed automatically if abnormal conditions occur.

5) End of Test

Lamps turn off automatically.

Chamber cools down to safe temperature.

Samples can be removed for evaluation.

Maintenance Information

Daily Maintenance

Check lamp cooling airflow.

Clean observation window.

Monitor water level and drainage system.

Inspect door seal for dust and deformation.

Weekly Maintenance

Wipe reflector surfaces and inner walls.

Check spray nozzles for blockage.

Inspect humidification boiler for scale buildup.

Monthly Maintenance

Calibrate irradiance sensor.

Verify temperature/humidity accuracy.

Check all safety protections and alarms.

Inspect quartz filter clarity.

Lamp Replacement

Xenon lamp lifespan approx. 1600 hours.

Always replace all lamps as a set for uniform irradiance.

Annual Maintenance

Full performance calibration

Refrigeration system inspection (R404A)

Leak detection

Electrical components tightening

Controller backup & software update
