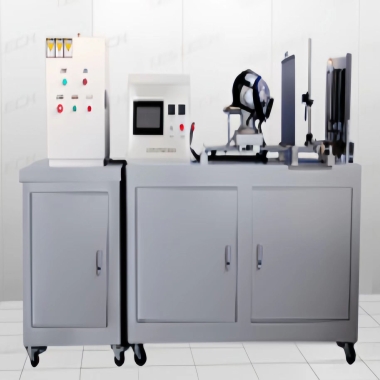

Full Face Thermal Radiation Resistance Test Machine

Introduction

Fireman fire-protective clothing is mainly composed of jacket and bibcomposition,may also wear fire protective helmets, fire protective bootsandfire-protective gloves!

Each set must befitteda serial number of check marks with strong national fire equipment quality inspection center is to be manufactured.

Standards

EN 136 - Respiratory protective devices - Full face masks - Requirements, testing and markingMain

Features

1. Cabinet paint treatment, beautiful; all toolings are made of stainless steel production, appearance, corrosion resistance;

2.PLC andtouch screencontrol systems; test interface is easy to operate;

3. The system automatically timing, the thermal data is automatically recorded and stored;

4. Various test reports independent storage and freedom retrieval;

5. Touch screen and PLC  control system, automatic timing, the heat data is automatically recorded and stored：

•Metal headmould, heat-resistant, corrosion-resistant;

• The distance between radiation source and the metal mould is 175mm, the HRR at this location is 7.0~9.0 kW / m2;

• US imports of heat meter to accurately detect the radiant heat;

• Temperature controller controls the heat release rate of the heat radiating device (resolution: 0.1kW / m2)

• Radiation clapboard free for extraction and placement.

• Head-mould moving is base on the slide design,

• Auxiliary lung: artificial respiration can be carried out during the testing process; artificial breathing device work 10-30 times per minute, each circle 1.0~2.5L,

• PLC automatic control device,

Optional:auxiliary lung

Specification:

Size: 1.400 (W) × 600 (D) × 1.400 (H) mm

Power: AC 220V, 50 / 60Hz, 30A

Weight: 80kg
