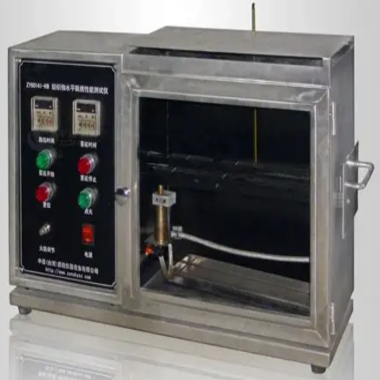

Flammability Tester

Standards

• ASTM D 1230

• ASTM F 963

• ASTM F2100

•16 CFR PART 1610

Features

1.Stainless steel cabnet, beautiful, corrosion-resistant, easy to clean;

2.Light structure, easy to move

3.Flame height regulated by imported needle valve to 16mm

4.The imported pressure gauge and pressure regulating valve can display the gas pressure

5.Heat resistant glass door is easy to observe the internal test state

6.Provide power switch to cut off the power supply

7.Timer automatic timing, resolution 0.1s; timing reminder function

8.Automatic timing of continuous burning time

9.Microswitch, automatically record the finish time of the test;

10.PLC and touch screen control system; more automatic.

11.Automatic calculation and storage of test result.

12.Equipped with standard custom brush; stainless steel material; brush pressure on the sample is 150g;

13.Customized stainless steel flame height is 16mm;

14.Printer to print test report freely (option)

Specification

Dimension:750(L) x 300(W) x 900(H)mm

Power:AC 220V, 50/60Hz, 5A

Weight:30 kg

Manual:Supplied

Butane gas:End user prepare.
