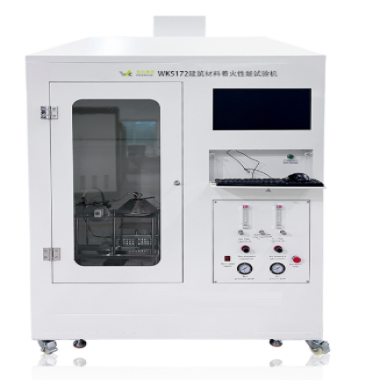

Building products ignitability Apparatus

Description

This apparatus is manufactured to conform to ISO 5657.The Apparatus has been designed,principally for testing building materials and composites, but it is capable of testing any sample of size 165mm × 165mm and up to a maximum of 70mm thick. The Apparatus measures

the ignition characteristics of exposed surfaces of essentially flat materials and specimens.

Standards

ISO 5657

GB/T 14523

Specification

1.The radiation cone is made of 304 stainless steel;

2.All internal fixtures are made of stainless steel;

3.The specimen support frame: thickness 1.5mm,

4.The calibration board is made of ceramic fibre of density (200土50)kg/m3. with sides measuring 165 mm and of thickness not less than 20 mm.

5.The rated power of the conical heater is 3000W, the heat output is 0-70kw / m2. and the resolution is 0.5kw/m2;

6.Thermocouple has automatic cold node compensation.

7.The Medtherm heat flux meter imported from the USA  with a water cooling system. Accuracy ± 3%, reproducibility deviation 0.5%;

8. Ignition device: automatic ignition.

9.Imported gas flowmeter, control of gas flow precisely

10.Install filter in propane gas path; prevent pollution test gas path system;

11.Equipped with check valve to prevent danger;

12.PLC&touch screen automatic control system;

13.Temperature monitor 0 ℃ ~ 1000 ℃; control heater temperature resolution ± 2 ℃;

14.Nominal range of balance 5000g, accuracy 0.1g;

15.The test data is automatically recorded and automatically saved;

16.The exaust hood is optional.
