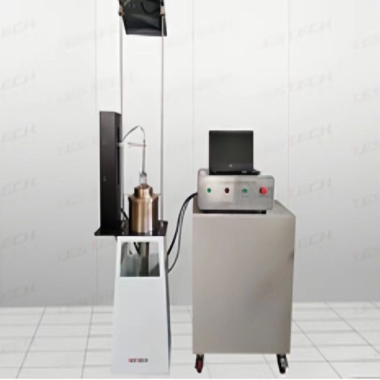

Non-Combustibility Apparatus

Introduction

This machine is designed andmanfactureaccording to ISO1182 .Furnace temperature can quickly reach temperature equilibrium into the test program; temperature curve can print free.

Standards

ISO 1182: building products --- incombustible fire reaction test

BS 476-4 & 11

ASTM E 136

Main Features

1. Intelligent test system with Patent design;

2. Stainless steel burner, beautiful and easy to clean;

3. The heating furnace size: Φ95 mm × Φ75 mm × 150 mm;

4. 3 mm × 0.2 m Ni 80% Cr 20% resistance band;

5. Air cover: Φ75 mm × 500 mm;

6. Thermocouple: insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm ;

7. Equipment with the power controller;

8. The temperature balanced time at 750ºC  is about 35min~40min;

9. Thermometers range: 0 ~ 1000 ºC ± 5%;

10. Equipped withmirrorto see theinteralof the furnace.

Control System

1. High degree of automation, test procedure safe and reliable, easy to operate;

2. To use of high-quality strip heater,furnacetemperature was raised to 900 ºC;

3. PLC control system + SSR temperature control system extending the life of furnace:

4.PLCoutput signal to control the heating voltage is 0-110VAC. Eliminate the influence of voltage fluctuation on temperature.

5. Temperature control: 750ºC±2ºC;Resolution:0.1ºC;

6. The sampleis moveup-down into the furnace automatically bymotor.

7. 7 "touch screenfor control parameter setting anddisplay / testdata acquisition andpreservation / screenmonitoring / real-time temperature curve shows / historical curve and data query;

8. With an audible alarm and alarm display functions accidents.

9. To equipped withprinter, to print the temperature curve.

Specification
