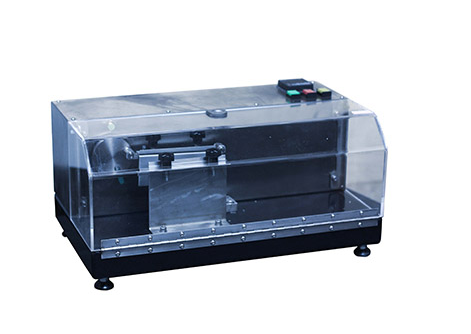

I. Product Overview The Anti-drill Tester (Friction Method) is a specialized instrument designed to
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
The Anti-drill Tester (Friction Method) is a specialized instrument designed to evaluate the drill resistance of materials such as composites, polymers, and ballistic fibers by simulating frictional drilling forces. It quantifies material durability under high-friction conditions, critical for security textiles, armored components, and industrial applications requiring abrasion resistance.
Type: Friction-based abrasion testing system
Test Method: Simulates rotational friction with abrasive media (e.g., abrasive belts/discs)
Key Metrics:
Penetration Depth (mm)
Material Loss Rate (mg/cycle)
Friction-Induced Heat (°C)
Sample Size: 100×100×30mm (adjustable clamping
ASTM D3884 (Textile abrasion resistance)
ISO 9352 (Friction and wear testing)
NIJ 0108.01 (Ballistic-resistant materials)
GB/T 29423 (Chinese abrasion resistance standard)
Friction Simulation:
Adjustable RPM and pressure to mimic real-world drilling
Standardized abrasive media compliance (ISO 6344)
Advanced Monitoring:
Real-time penetration depth tracking (laser sensor, ±0.1mm)
Thermal imaging to monitor heat buildup
AI-based wear pattern analysis
Automation:
Programmable multi-stage friction cycles
Motorized sample rotation
Automatic reset after test completion
Security Textiles: Testing bulletproof vests and cut-resistant fabrics
Automotive: Evaluating tire tread and composite panel durability
Aerospace: Validating carbon fiber-reinforced polymer (CFRP) integrity
Industrial: Inspecting industrial hoses and conveyor belts
Heat-resistant gloves required for sample handling
Use eye protection during high-speed friction tests
Maintain ventilation to dissipate heat
* ISO 17025-calibrated laser sensor * SiC-coated abrasives (10-year lifespan) * Emergency stop button with thermal overload protection * Includes 5-year motor warranty * Compact design for lab/bench use**Technical Highlights**- ±0.2mm penetration depth accuracy (NIST-traceable) - 1000 RPM sustained friction testing - Real-time thermal gradient visualization software - Energy-efficient regenerative braking system - CE/IECEx certified for high-temperature environments
| Parameter | Specifications |
|---|---|
| Friction Head | Rotating abrasive disc (120mm diameter, SiC-coated) |
| Rotation Speed | 100–1000 RPM (programmable, ±5 RPM) |
| Pressure Control | 5–50 N (adjustable via pneumatic system) |
| Abrasive Media | Standardized silicon carbide belts (Grit 80–400) |
| Temperature Measurement | Thermocouple (0–500°C, ±1°C accuracy) |
| Power Supply | 220V/50Hz, 1.5kW |
| Dimensions | 800×600×1200mm (L×W×H) |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
