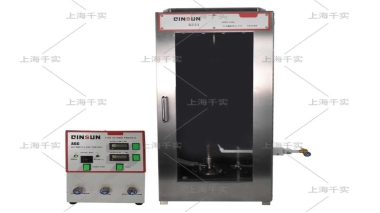

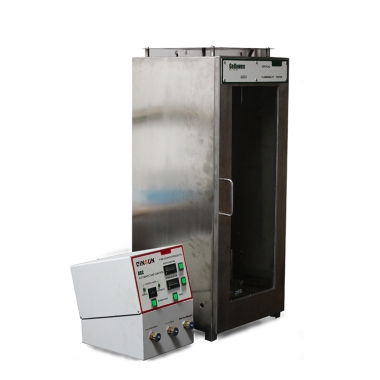

vertical flammability tester Applications:
Vertical Flammability Chamber for measuring the vertical flame spread for childrens’ sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture. Comprises a draft free stainless steel cabinet with observation window and back wall painted black for easy test viewing.vertical flammability tester Specifications：
Time Display and accuracy: 0-999.9s, 0.1s
Ignition time: 12+/-2 s or 3+/-0.2 s

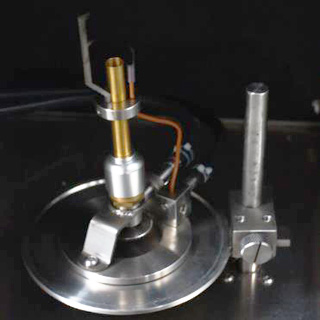

Burner size: Dia. 10mm or Dia. 11mm x barrel length 76+/-6mm
Distance from burner to specimen: 19 or 17 mm
Dimension of holder: outside 442 x 76 / 442 x 89mm, interior 356x51 mm
Timing: PLC controlled
System and Display: Programmable PLC system to control automatically, text display
vertical flammability testing machine Included Accessories：
1 Specimen template
4 Char length loading weights
1 Sample Holder
1 Steel scale
fabric flame retardant tester Product Information: A. With a sealing free stainless steel combustion cabinet with observation window;
B. With standard combustion chronograph, for accurate detection of flame spread rate;
C. The different specimen holders and associated hardwares for various test standards;
D. Automatic Gas Control System including solenoid control gas valve and automatic ignition timer and controls.
Configuration and consumables:
