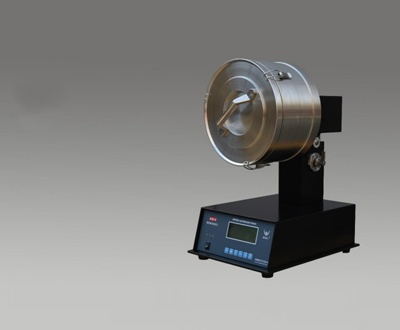

KM-6 Particle Abrasion Tester

The KM-6 particle wear tester is designed and developed by our company according to the standard tec

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

The KM-6 particle wear tester is designed and developed by our company according to the standard technical indicators of the American ASTM D4058-96 (Reapproved 2015) "Standard Test Method for Wear of Catalysts and Catalyst Carriers". It is a special test instrument for the wear rate of granular catalysts, catalyst carriers, etc. It is widely used in the fields of petroleum, chemical industry, scientific research, etc.

Main functions

This instrument uses LCD display, Chinese and English menus, simple operation, and the set parameters have power-off memory function, and no repeated settings are required. It uses high-power stepper motor transmission and high-precision single-chip microcomputer control to make the work more stable and the speed accurate. This instrument provides two working modes: wear and screening to meet the different requirements of catalyst scientific research and production units.

Technical indicators

Grinding drum speed: 25, 30, 40, 50, 60, 80, 100 (rpm)

Grinding drum speed: 1-9999 rpm

Screening frequency: 1-9 Hz

Screening time: 1-9999 seconds

Size screen aperture: 20 mesh (or as required)

Grinding drum diameter: 10 inches (254mm)

Grinding drum net depth: 6 inches (152mm)

Grinding drum roughness: <250μ inches (6.4μmm)

Ribbon height: 2 inches (51mm)

Grinding drum material: stainless steel
