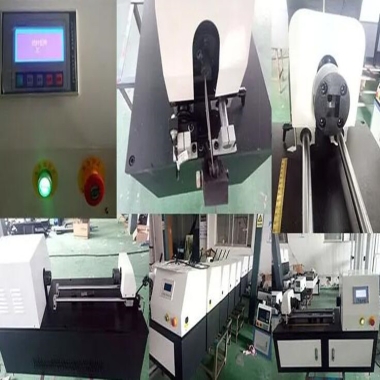

Wire Torsion and Winding Tester

Product Introduction

Metal wire twisting and winding machine is widely used in aerospace, metal material processing, tire manufacturing and other industries, as well as colleges and universities, scientific research institutions, technical supervision, quality inspection stations and other departments.

Standards

GB/T 2611-2007 "Testing machine general technical requirements"

ISO 7800:1984 Test method for unidirectional torsion of metal wires

ISO 9649:1990 Test method for bidirectional torsion of metal wires

GB/T 3428-2002 "Zinc-coated steel wire for overhead stranded wire - Winding test - torsion test"

GB/T 239-1999 "Torsion Test of Metal Wire"

GB/T 2979-2020 "Metal materials wire winding test method"

Product Advantages

Dual Functionality: Performs both torsion and winding tests on a single machine, offering versatility and saving space.

Comprehensive Wire Evaluation: Provides a more complete picture of the wire's mechanical properties and formability.

Standard Compliance: Enables testing according to multiple relevant national and international standards.

Efficiency: Streamlines the testing process compared to using separate machines for each test.

Quality Assurance: Essential tool for quality control in wire production and related industries.

Controlled Testing: Allows for precise control of test parameters for repeatable and reliable results.

Main parameters

1. torsion sample size: diameter 1mm-10mm; Winding sample size: diameter 1mm-6mm

2. the marking distance between the two plus heads: 0-500mm, adjustable

3. twisting/winding speed: 0-2.0r/s, adjustable, error <±10%

4. power supply voltage: AC220±10%/50Hz
