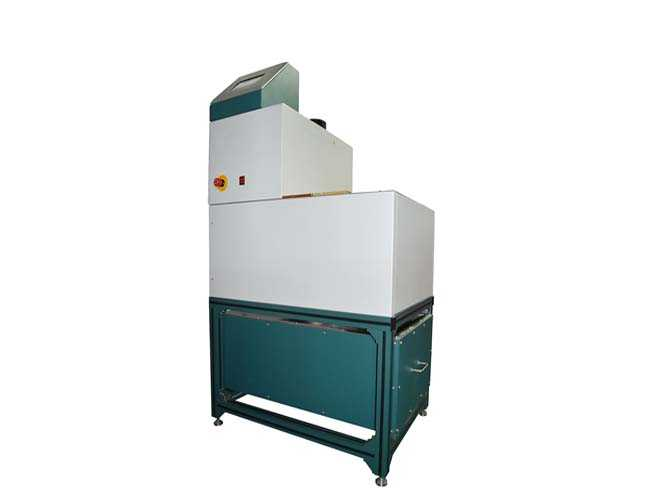

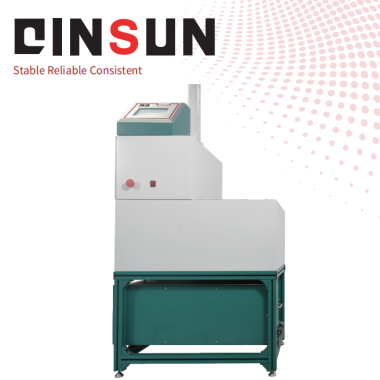

Precision Rain Water Resistance Tester for Product Durability.
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
AATCC 35: Water Resistance: Rain Test for Fabrics
BS EN ISO 22958: Textiles – Determination of Resistance to Water Penetration – Rain Test
GB/T 23321: Textiles – Testing and Evaluation for Water Repellency
Realistic Simulation: Mimics horizontal rainfall (60–240 cm water column) to evaluate fabric water repellency under dynamic conditions.
Precision Control: PLC + touchscreen automation ensures stable water pressure (±1.5 cm accuracy) and liquid level consistency.
Versatile Testing: Suitable for umbrellas, raincoats, protective clothing, and industrial composites.
Data Accuracy: Measures absorbent paper weight gain post-test for quantitative water repellency analysis.
Energy Efficient: 1000W heating system maintains water temperature (±1°C uniformity).
User-Friendly Design: Large reservoir (40L) reduces refill frequency; tap/distilled water compatible.
Horizontal Spray System: 13 nozzles (φ0.99mm) simulate directional rainfall at 305mm from the sample.
Adjustable Water Column: 60–150 cm (standard) or 60–240 cm (extended) pressure range.
Stainless Steel Construction: Corrosion-resistant inner groove for vertical sample fixation.
Automated Replenishment: Algorithm maintains constant water level for consistent pressure.
Sample Compatibility: Fits 40mm × 285mm × 190mm material sizes (e.g., fabrics, laminates).
Safety & Compliance: Overheat protection, emergency stop, and CE certification.
| Parameter | Specification |
|---|---|
| Test Water Column | 60–150 cm (±1.5 cm) / 60–240 cm (Extended) |
| Water Temperature | 20°C ±1°C (Adjustable) |
| Control Mode | PLC + 7-inch Touchscreen |
| Nozzle Quantity/Size | 13 pcs, φ0.99 mm |
| Nozzle-to-Sample Distance | 305 mm |
| Sample Holder Size | 40 mm × 285 mm × 190 mm |
| Reservoir Capacity | 40 L (Tap/Distilled Water) |
| Heating Power | 1000 W |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 810 mm × 610 mm × 1450 mm |
| Net Weight | 125 kg |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
